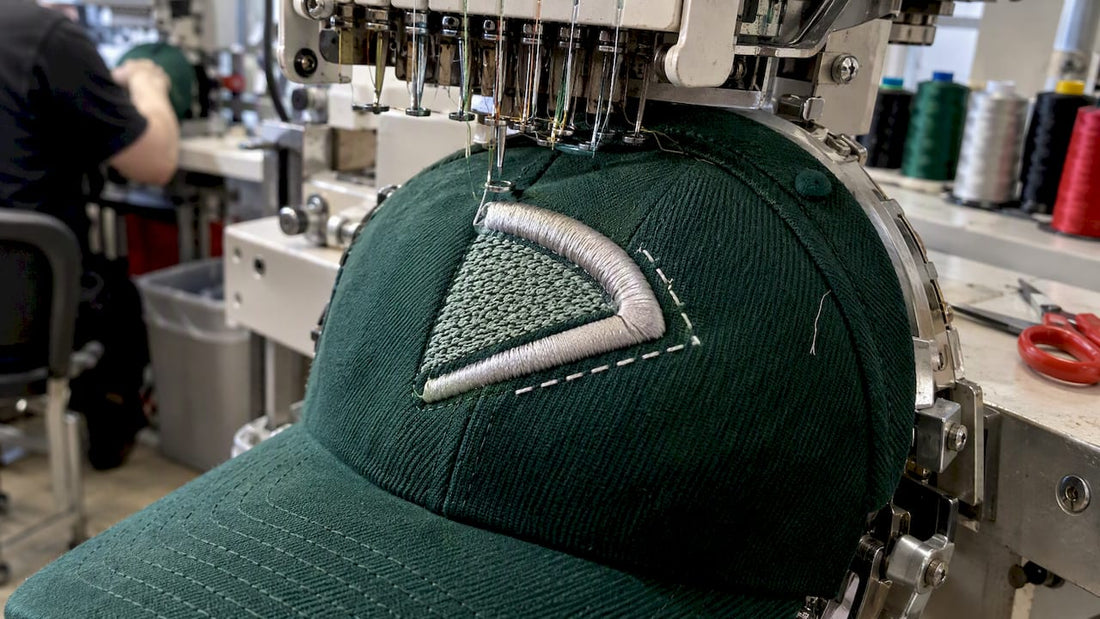

Cap showing satin, fill, and running stitches

Hat Stitching Types: Satin, Fill, Run and 3D Puff

Most hat embroidery is built from three stitches: satin, fill and running stitch. They are then finished either flat or raised as 3D puff. Satin gives smooth, glossy lettering and borders. Fill covers larger solid areas. Running stitch draws thin outlines and fine detail. Knowing which is which helps you read a logo on a cap, judge whether it will last, and pick the right hat.

This guide explains each stitch in plain words and shows where it works best. It also covers how hat shape and fabric change the result, and what to check on a hat before you add it to your cart.

Urbancaps
urbancaps.co.nz
Find a Cap That Fits Your Style
Explore Urbancaps’ range of caps and beanies, with timeless designs and durable fabrics for everyday wear and outdoor activities.
Browse caps and beanies

TL;DR

  • Satin stitch suits lettering, borders and small to medium shapes. Fill stitch covers big areas. Running stitch handles outlines and thin detail.
  • Flat embroidery sits directly on the fabric. 3D puff uses foam under the stitches for a raised logo, most often seen on caps.
  • Caps are curved and have seams, so good designs are kept modest and digitised specifically for a cap.
  • Check a hat by looking at letter edges, flatness around the logo and the inside backing, not just the front.
  • Shopping for an embroidered cap or beanie? Start with our baseball caps and beanies.

Table of Contents

The three base stitches on a hat

A machine embroidery design is a set of instructions that tells the needle where to go. Whatever the logo looks like, it is nearly always made from a mix of three stitch types. One embroidery provider describes satin, fill and running stitch as the popular choices for hats, and each has a different job.

Satin stitch

Satin stitch is a series of closely packed, parallel stitches that run across a narrow shape. The thread catches the light, which is why it looks glossy and smooth. It is the stitch behind most cap lettering. A cap-digitising guide from Impressions says most cap lettering, including 3D puff, uses satin stitches.

Satin works best for small to medium designs, borders and clean edges. It has limits. The same guide advises against satin text smaller than 5 mm and against satin columns narrower than 1 mm, because the letters stop being legible. That is why tiny text on a cap often looks fuzzy: the stitch has run out of room.

Fill stitch

Fill stitch covers an area with rows of stitches, the way you would colour in a shape. It is used for larger solid areas such as a badge, a mountain, an animal body or a block of colour. Ricoma describes fill stitch as suitable for larger areas and recommends lighter density on curved hat surfaces.

Density matters because a hat crown is not flat. Pack too many stitches into a curved panel and the fabric gets stiff, puckers or pulls the shape out of line. A lighter fill lets the fabric move.

Running stitch

Running stitch is a single line of stitches. It is the thinnest option, used for outlines, fine details, and small features such as the lines inside a logo. A New Zealand embroidery guide from Angie’s separates run stitch for outlines and fine details, satin for lettering, borders and clean edges, and fill for larger solid areas.

On a hat, a running stitch line looks delicate. It is good for a thin outline around a shape or a small signature detail. It is not the stitch to use for bold lettering, because a single thread line lacks weight from a distance.

Quick comparison

Stitch Looks like Best for Watch out for
Satin Smooth, glossy bars of thread Lettering, borders, small to medium shapes Text under 5 mm or columns under 1 mm lose legibility
Fill Textured, solid coverage Larger areas and blocks of colour Heavy density on a curved crown makes it stiff
Running Single thin line Outlines and fine details Looks faint if used for large or bold elements

Why the right mix beats one stitch

A good logo does not use one stitch everywhere. Angie’s digitising guidance explains that stitch choice should follow the design element. Forcing a fill into a narrow letter, or a thin run into a large shape, gives a poorer result than combining run, satin and fill sensibly.

For example, a simple badge on a cap might have a fill-stitched centre, a satin border around it and a running-stitch detail line inside. A plain letter logo may be satin only. When you see a logo where the letters look chunky and clean while the background area looks textured, you are looking at satin and fill working together as intended.

The practical takeaway: the stitch type is less important than whether it matches the shape. Neat embroidery is usually a sign of the right stitch in the right place.

Why the right mix beats one stitch — overview diagram

Flat embroidery vs 3D puff

The three stitches above describe how the thread is laid. The next choice is how the finished logo sits on the hat: flat or raised.

Flat embroidery

Flat embroidery is the standard style. A New Zealand embroidery provider, Lenco, describes it as stitches lying directly on the fabric, suitable for logos, names and detailed designs. It handles small text and fine detail better than any raised style, and it is lighter on the hat. If a design has several colours or intricate lines, flat is usually the better call.

3D puff

3D puff places foam beneath the stitching so the design stands up from the cap. Lenco notes this raised effect is commonly seen on caps. The look is bold and graphic, which suits streetwear and sports styles.

Puff has its own rules. Because it is usually made of satin stitches over foam, it works best on thick, simple shapes and bold block letters. Fine detail, thin lines and small text do not survive the foam. If you want a raised look, expect a simple design.

Flat 3D puff
Look Smooth, close to the fabric Raised, bold, graphic
Best designs Names, detailed logos, multiple colours Thick block letters, simple shapes
Typical hat Any cap, beanie patch, bucket hat Structured caps, front panel logos
Weakness Less dramatic Poor with small text and thin lines

How hat construction changes the stitching

A shirt is flat. A hat is a curve with seams, a stiff front and often a sweatband. That changes how embroidery is done and how it looks.

Melco, a maker of embroidery machines, notes that cap panels, fabrics, backing and construction vary, so no single cap system produces identical results on every hat. Two caps that look alike can stitch differently.

Structured and six-panel caps

Structured baseball caps have a stiff front panel, often with a centre seam. Embroidery crossing that seam can look uneven. Melco advises a slight diagonal rather than stitching parallel to the front seam on six-panel caps, supported by a light-density crossed diagonal underlay. Underlay is a base layer of stitches that holds the fabric steady before the top stitches go on.

If you shop for a cap with a front logo, look at how the design sits across the centre line. Clean letters with no gaps at the seam are a good sign.

Unstructured and soft hats

Soft hats have no rigid front, so they move more under the needle and on your head. SanMar’s education team notes that soft, unstructured bucket hats can be embroidered in many locations, including the brim, with suitable supplies. They also say the smaller, curved front crown calls for designs no larger than 2.5 by 4 inches. That is why bucket hat logos tend to be compact.

Beanies and knit hats

Knit fabric stretches, so direct embroidery is harder. Many beanies carry a stitched patch instead, which is embroidered separately on a stable base and then sewn on. Our embroidered winter beanie with a custom letter patch is an example of that approach, and the checkered five-pointed star patch knit hat is another. A patch keeps the lettering crisp even when the knit stretches over your head.

Fabric matters too

The fabric under the thread affects how clean the stitching looks. Cotton twill takes embroidery well, while very thick or stretchy fabrics are harder. If you want to know more about what hats are made from, read our guide to the fabrics most commonly used to make hats and our explainer on durable hat materials.

What good stitching looks like on a finished hat

You do not need to be an embroiderer to spot quality. The same problems show up on any cap, and most of them come from the same few causes.

Puckering and distortion

Puckering is when the fabric bunches around the logo. Impressions recommends keeping cap designs modest, because oversized designs increase puckering, distortion and interference from seams. Its cap embroidery fundamentals list further ways makers prevent the problem: digitising specifically for caps, hooping correctly, using suitable underlay and density, adding pull compensation, stitching centre-out and bottom-up without starting dead centre, and testing each cap style. Cap embroidery fundamentals from Impressions covers these in detail.

When you handle a cap, run a finger around the logo. The fabric should lie flat, with no ripples radiating out from the stitching.

Letter shape and legibility

Looking at lettering is the quickest test. Impressions’ lettering guidance suggests legibility on caps depends on minimum dimensions, short underlay stitches and matching stitch type to the width of the letter. For small cap text, it recommends a centre-run underlay with a stitch length of about 1 mm so the underlay stays inside the finished satin.

In plain terms: crisp edges and clear gaps between letters mean the logo was set up well. Blobby letters, thread showing through the middle of a letter or edges that look ragged suggest the stitching was too small or too dense for the shape.

Alignment

An off-centre or tilted logo usually comes from the hat shifting during stitching. Impressions recommends tight, correctly adjusted cap-frame hooping to prevent shifting and alignment problems. For a buyer, the check is simple: stand the cap on a table and look from the front. The logo should sit square and centred.

The inside of the hat

Turn the hat inside out. Stabiliser or backing sits behind the embroidery. SanMar recommends a firm medium-weight cutaway or sticky stabiliser for bucket hat embroidery so the work wears well. Look for neat backing with no loose thread tails, and no stiff, scratchy patch against your forehead if the hat is meant for long wear.

A note on speed and care in production

You will not see this on the hat, but it explains why some embroidered caps cost more than others. Impressions recommends testing each cap style and running the machine slower on caps, at 600 to 700 stitches per minute. Slower, tested production is part of why well-made caps look cleaner.

Our view on hat stitching

We sell hats, not embroidery services, so our view comes from the buyer’s side. We pick and stock headwear for New Zealand conditions, and we look at the details a customer will see and feel on a hat day after day.

Our view on hat stitching — overview diagram

Our view is simple. Stitching should do three jobs: look good, stay flat and last. The loudest logo is not the best one. A small, crisp satin-stitched letter on a cotton cap often looks better, and wears better, than a crowded design with too many details. A raised puff logo is great when the shape is bold. A flat logo is better when the design is detailed.

We also think stitching should be judged together with the hat itself. A well-stitched logo on a thin or poorly shaped cap will not save it. That is why we pay attention to fabric, fit and construction, and why we have written guides on hat sizing and stiffening a hat brim. Good headwear is the sum of many small things, and the stitching is one you can check in seconds.

— Urban

Choosing an embroidered hat in New Zealand

Here is a quick way to match what you want to the stitching you should look for.

  1. Decide the look. Smooth and understated points to flat embroidery. Bold and sporty points to puff.
  2. Match the design to the hat. Simple lettering suits caps. Compact designs suit bucket hats. Patches suit beanies.
  3. Check the lettering. Clean edges and clear gaps between letters.
  4. Check flatness. No puckering around the stitching.
  5. Check alignment. The logo should be centred and square.
  6. Check the inside. Tidy backing, no loose threads.
  7. Check the fit. A great logo on the wrong size is still the wrong hat. Our hat sizing guide shows how to measure.

Embroidered styles we stock

If you want to see these stitch types on real hats, we have several embroidered options. The classic letter embroidery cap is a cotton cap with a letter design. The letter graphic cap and the fashion letter cap carry embroidered typography, and the green stitch cap is a casual cotton baseball hat with stitched detail. For more, browse all baseball caps, bucket hats, newsboy caps and kids caps. We are NZ owned and operated, and shipping within New Zealand is free.

Knit Hat Checkered Five-pointed Star Patch

Stitch choice by hat style

When you are not sure what to expect, this list covers the common cases.

  • Baseball caps: Satin lettering and fill-stitched shapes on the front panel. Raised puff is common on structured caps.
  • Bucket hats: Compact logos, often on the front or the brim. Our bucket hat alternatives guide helps if you are weighing styles.
  • Beanies: Stitched patches rather than direct embroidery, because of the stretch in the knit.
  • Newsboy and cheesecutter caps: Usually plain, or with a small, discreet mark. The cloth and shape are the feature.
  • Fedoras: Usually no embroidery at all. The detail is in the band, the crown crease and the felt or straw.

There is no stitch that is best everywhere. The right one depends on the shape being made and the hat it goes on.

Common mistakes when judging hat stitching

  • Assuming more thread means better quality. Dense stitching on a curved crown can stiffen and pucker the fabric. Ricoma’s advice to use lighter density on curved surfaces shows why.
  • Expecting small text to look sharp. Below about 5 mm, satin text loses legibility, according to Impressions.
  • Expecting detail from puff. Raised foam suits bold shapes, not fine lines.
  • Ignoring the inside. The backing tells you a lot about how the hat will wear.
  • Judging from a photo alone. Zoom in on lettering edges, and read reviews for comments on logo wear.

FAQ

What stitch should I use for a hat?

Use satin stitch for small to medium designs and lettering, fill stitch for larger solid areas, and running stitch for outlines and fine details. On curved hat surfaces, use a lighter fill density so the fabric does not pucker. If you are buying rather than stitching, look for a design that uses the right stitch for each part of the logo.

What is the difference between flat embroidery and 3D puff?

Flat embroidery lays the stitches directly on the fabric, which suits names, logos and detailed designs. 3D puff places foam under the stitching to create a raised look, and it is commonly seen on caps. Puff works best with thick, simple shapes, and flat is better for small text and fine lines.

Why does the embroidery on my cap look puckered?

Puckering usually comes from a design that is too large or too dense for the curved cap, or from fabric that shifted while it was hooped. Impressions lists modest design size, cap-specific digitising, correct hooping and suitable underlay as the main fixes. If a new cap puckers badly out of the box, it is a quality issue worth raising with the seller.

Can any hat be embroidered?

Not equally well. Cap panels, fabrics, backing and construction vary, so results differ between hats. Soft bucket hats can take embroidery in many places, including the brim, but their small curved crowns suit compact designs. Stretchy knits such as beanies are often finished with a stitched patch instead.

How big can a hat embroidery design be?

It depends on the hat. For soft bucket hats, SanMar’s guidance points to designs no larger than 2.5 by 4 inches on the curved front crown. Structured caps vary, and Impressions advises keeping cap designs modest in general, because bigger designs increase puckering and distortion.
